‹ Home › Inventory › 2023 Custom Harley-Davidson FLFBS Softail Fat Boy 114 in Candy Red

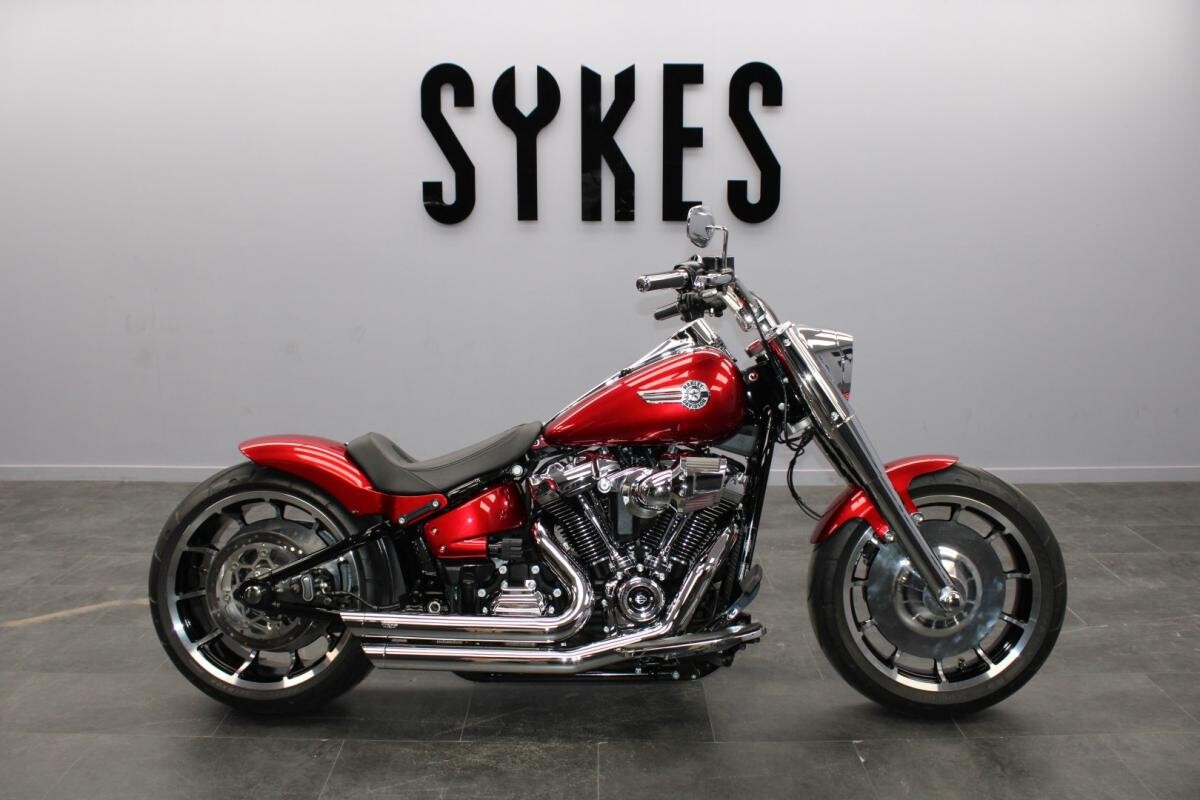

Custom Harley-Davidson FLFBS Softail Fat Boy 114 in Candy Red 2023 model on a 24 plate This stunning fully customised Fat Boy comes to us on consignment with just 205 miles on the clock after having all the custom work carried out by ourselves last year and a our client now having to sell due to a change in circumstances. As you can see, this bike has had a Thunderbike rear fender setup installed, matching Thunderbike seat, chrome Cobra slash cut full exhaust system, screamin eagle heavy breather high flow air filter, chrome front end kit and axle cover, custom painted highlighted wheels, Thunderbike front turn signals, side mounted number plate, Airflow handlebar grips, flush fitting fuel caps and a candy apple red custom paint scheme by Image Design Custom including the side panels. The bike has had one breif previous onwer, as mentioned has covered just 205 miles and is in as new condition. All our approved used Harley-Davidson Motorcycles come fully prepared with a 110-point safety check over, 12 months Certified warranty and MOT cover, 12 months Harley Assist Rescue and Recovery, minimum of 6 months MOT and a full detailed valet. Each bike is HPI checked, mileage checked and prepared to the highest standard. Part Exchange Welcome, Finance Available, UK Mainland Delivery from £100. Option available to purchase Extended Warranty, Tyre Care Insurance and have the bike professionally Ceramic Coated. We can send detailed images or walk around videos via WhatsApp or email. Please check this bike is available before visiting or reserve it with a £200 deposit. Exact mileage may change. Check our website for our full stock list, always 60+ Harley-Davidsons in one place! Open 6 days a week 9.00 to 17:30 Monday to Friday, 9.00 to 17.00 Saturdays.

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Seat height, unladen:

  26.6 in
- Ground clearance:

  4.5 in
- Trail:

  4.1 in
- Wheelbase:

  65.6 in
- Tyres, front specifications:

  160/60R18,70V,BW
- Tyres, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  4.2 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  670 lbs
- Weight, in running order:

  699 lb
Engine

add remove
- Engine:

  Milwaukee-Eight™ 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  118.7 ft-lb
- Engine torque (RPM):

  3000
- Lean angle, right (deg.):

  25.6
- Lean angle, left (deg.):

  25.6
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  43 mpg (5 l/100km)
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Wheels, front type:

  Machined, Lakester cast aluminum
- Wheels, rear type:

  Machined, Lakester cast aluminum
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
