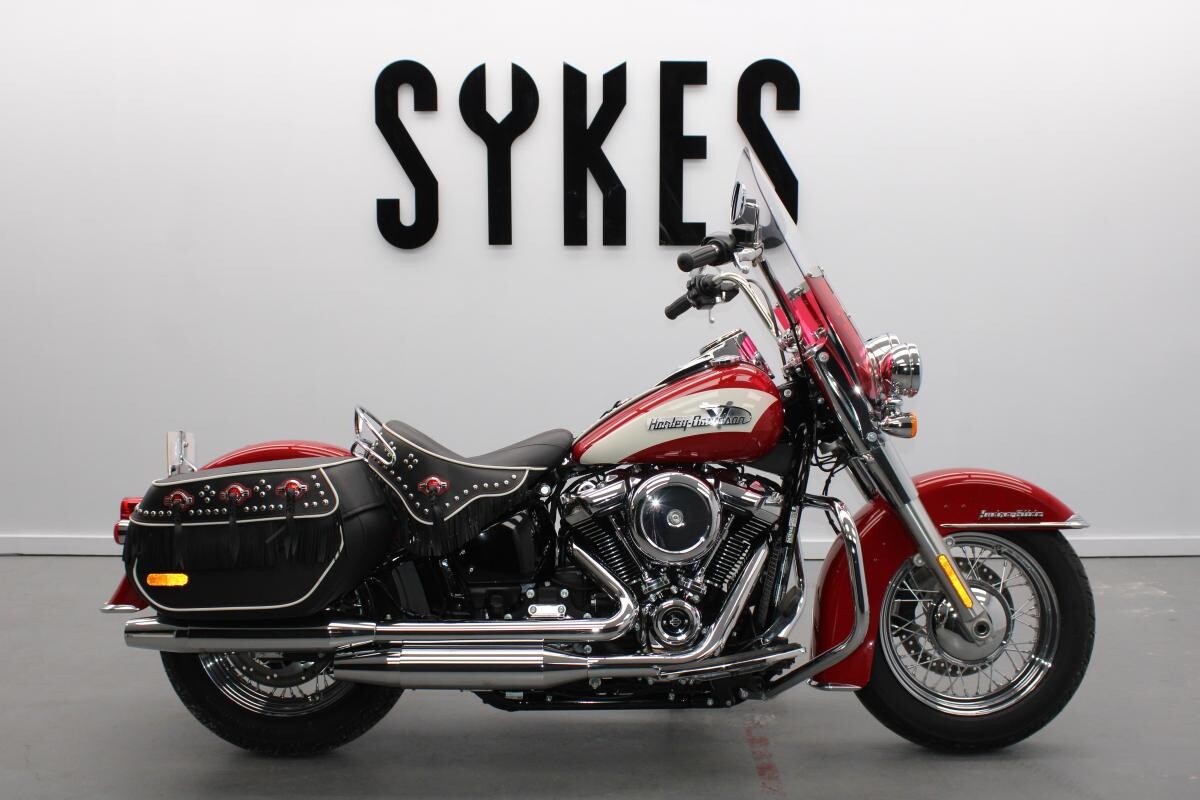

Harley-Davidson FLI Softail Hydra Glide Revival in Redline Red and Birch White. 2024 model on a 74 plate. No 281 out of 1750. Experience heritage reimagined with the 2024 Harley-Davidson Hydra-Glide Revival. This limited-edition beauty blends iconic vintage styling with modern performance, delivering a ride that’s as smooth as it is powerful. From its classic two-tone paint to its nostalgic details and premium comfort, every inch is crafted to turn heads and stir the soul. Ride the legend. Own the legacy. The Hydra-Glide Revival isn’t just a motorcycle—it’s a statement. This Hydra Glide Revival comes in complete factory spec. In incredible condition with just with 1 previous owner and is in immaculate condition. All our approved used Harley-Davidson Motorcycles come fully prepared with a 110-point safety check over, 12 months Certified warranty and MOT cover, 12 months Harley Assist Rescue and Recovery, minimum of 6 months MOT and a full detailed valet. Each bike is HPI checked, mileage checked and prepared to the highest standard. Part Exchange Welcome, Finance Available, UK Mainland Delivery from £100. Option available to purchase Extended Warranty and Tyre Care Insurance. We can send detailed images or walk around videos via WhatsApp or email. Please check this bike is available before visiting or reserve it with a £200 deposit. Exact mileage may change. Check our website for our full stock list, always 60+ Harley-Davidsons in one place! Open 6 days a week 9.00 to 17:30 Monday to Friday, 9.00 to 17.00 Saturdays.

Specifications

Dimensions

add remove
- Length:

  95.1 in
- Overall width:

  36.6 in
- Overall height:

  57.8 in
- Seat height, unladen:

  27.0 in
- Ground clearance:

  4.6 in
- Rake:

  30
- Trail:

  5.7 in
- Wheelbase:

  64.2 in
- Tyres, front specifications:

  130/90B16,73H,BW
- Tyres, rear specifications:

  150/80B16,77H,BW
- Fuel capacity:

  4.2 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  710 lbs
- Weight, in running order:

  742 lb
- Luggage capacity – volume:

  1.5 cu ft (0.043 m³)
- Tyre, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
- Fork angle:

  30
- Reserve fuel capacity, fuel injection:

  0.8 gal
- Gross axle weight rating, front:

  450 lbs
- Gross axle weight rating, rear:

  730 lbs
- Transmission capacity:

  1 qt. (.95 l )
- Primary chain case capacity:

  1.25 qt. (1.18 l )
Engine

add remove
- Engine:

  Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Air cleaner:

  Screamin' Eagle® round high-flow air cleaner with oiled-cotton filter element.
- Exhaust:

  2-into-2 shorty dual; catalyst in muffler
- Lubrication system:

  Pressurized, dry-sump with oil cooler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  118.7 ft-lb
- Engine torque (RPM):

  3,000
- Horsepower:

  94 HP / 70 kW @ 4750 rpm
- Lean angle, right (deg.):

  27.4
- Lean angle, left (deg.):

  27.4
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100 km)
- Lean angle testing method:

  J1168
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
- Final drive:

  Belt, 32/66 ratio
- Clutch:

  Mechanical, 10 plate wet, assist & conventional
- Transmission:

  6-Speed Cruise Drive®
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Chrome Steel Laced
- Wheels, rear type:

  Chrome Steel Laced
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
- Frame:

  Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
- Swingarm:

  Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer
Electric

add remove
- Lights (as per country regulation), Headlamp:

  All LED, low beam, high beam and signature position lamp
- Lights (as per country regulation), Tail/Stop:

  Incandescent Zeppelin tail lamp
- Lights, front signal lights:

  Incandescent bullets
- Lights, rear turn signals:

  Incandescent bullet light bar
- Gauges:

  5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
- Battery:

  Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F
- Charging:

  Three-phase, 42 Amp system (390 Watts @13 Volts, 1000 rpm, 546 Watts max power @ 13 Volts, 2000 rpm)
- Starting:

  1.6 kW electric with solenoid shift starter motor engagement
- Auxiliary lamps:

  LED fog
- Electric power outlet:

  USB A-type; output 5V at 2.4A
