‹ Home › Inventory › 2022 Harley-Davidson RA1250S Pan America Special Adventure Bike

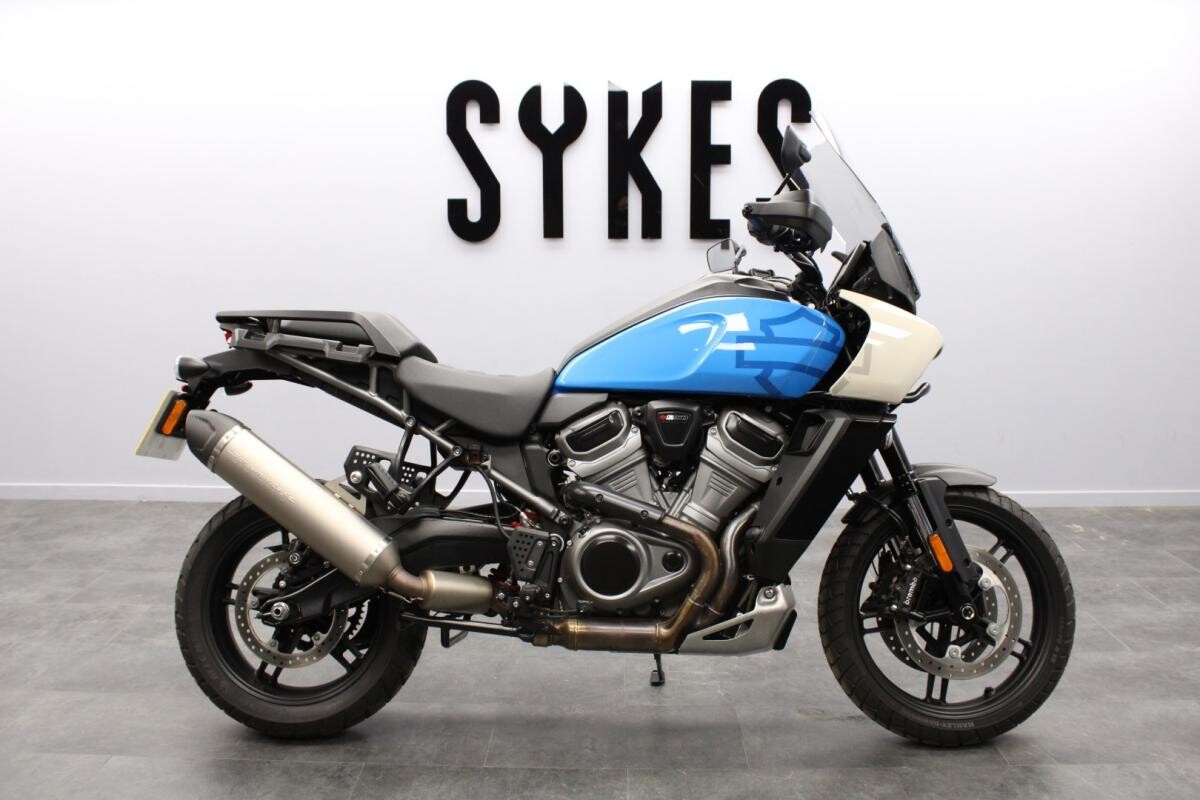

Harley-Davidson RA1250S Pan America Special in Fastback Blue and White Sand Pearl with ARH 2022 model on a 22 plate This stunning blue Pan America comes to us in factory original spec. The bike has had one previous owner, has covered 2,153 miles and is in fantastic condition. The Pan America 1250 Special motorcycle is our premier two- wheel multi-tool built to endure, designed to explore, and engineered for adventure. All our used Harley-Davidson Motorcycles come fully prepared with a 120-point check over, 12 months originals warranty, 12 months Harley Assist Rescue and Recovery, minimum 6 months MOT and a full valet. Each bike is HPI checked, mileage checked and prepared to the highest standard. Part Exchange Welcome, Competitive Finance Available, UK Mainland Delivery from £100. We can send images or videos via WhatsApp or email. Please check this bike is available before visiting or reserve it with a £200 deposit. Exact mileage may change. Check our website for our full stock list, always 60+ Harley-Davidsons in one place! Open 6 days a week 9.00 to 17:30 Monday to Friday, 9.00 to 17.00 Saturdays. Sykes Harley-Davidson, Holmes Hill, East Sussex, BN8 6JA.

Specifications

Dimensions

add remove
- Length:

  89.4 in
- Ground clearance:

  6.9 in
- Rake:

  25
- Trail:

  4.3 in
- Wheelbase:

  62.4 in
- Tyres, front specifications:

  120/70R19 60V
- Tyres, rear specifications:

  170/60R17 72V
- Fuel capacity:

  4.7 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  534 lbs
- Weight, in running order:

  568.79 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  93.7 ft-lb
- Engine torque (RPM):

  6,750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  46.1 mpg (5.1 l/100km)
Drivetrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Wheels, optional style type:

  Annodized aluminum tubeless laced
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Electric

add remove
- Lights (as per country regulation), indicator:

  LED Bullet Turn Signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
