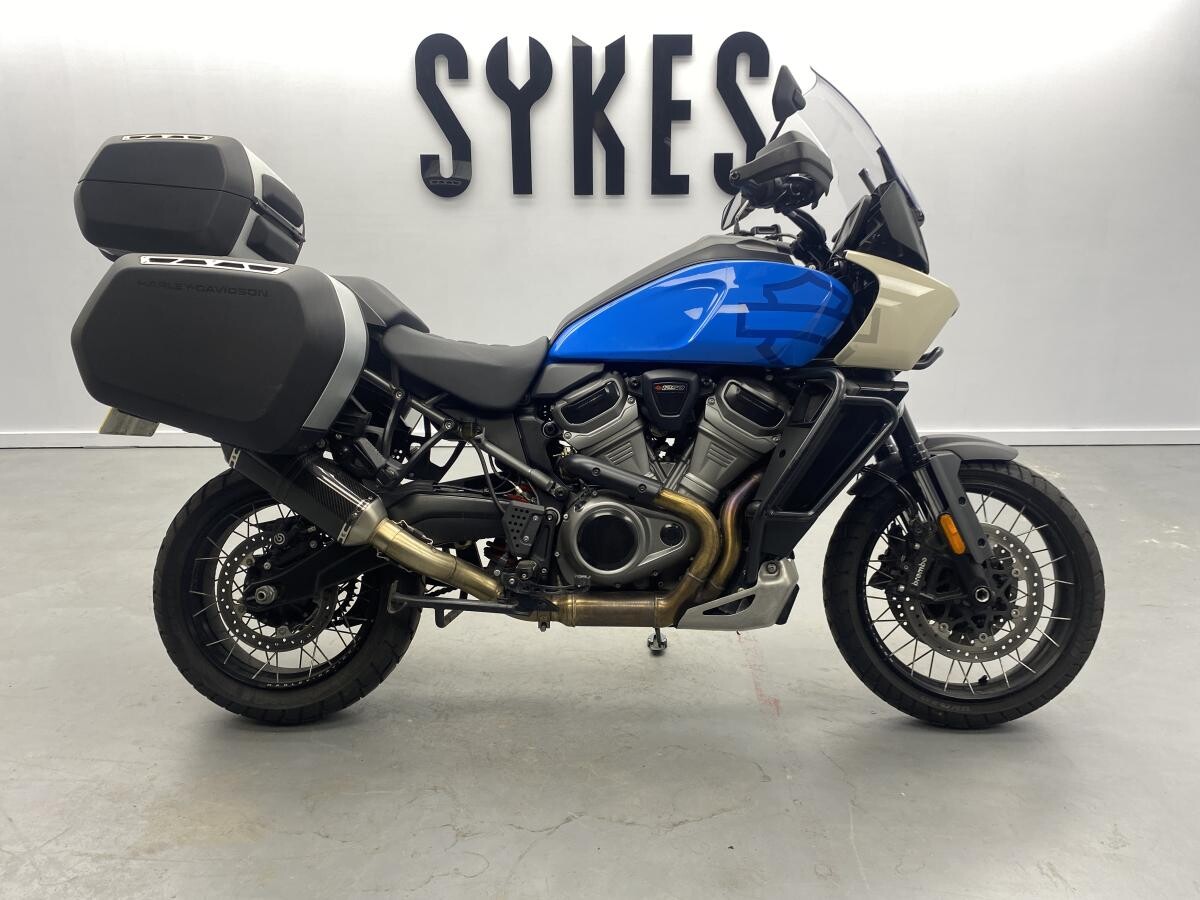

‹ Home › Inventory › Harley-Davidson RA1250S Pan America Special in Two Tone Fastback Blue & White

Harley-Davidson RA1250S Pan America Special in Two Tone Fastback Blue & White Sand 2022 model on a 73 plate This Pan America Special is in top condition and comes fitted with the following accessories… Genuine H-D sports luggage and Cobra slip on exhaust. This model comes fitted with the factory laced wheels along with the adaptive ride height function. The bike has covered just over 4500 miles and has had 1 previous owner. All of our Approved Used Harley-Davidson motorcycles are meticulously prepared to the highest standard. Each bike undergoes a comprehensive 110-point safety inspection and comes complete with a 12-month Harley-Davidson Certified Warranty, 12 months MOT cover, and 12 months Harley Assist Rescue & Recovery. Every motorcycle is supplied with a minimum of 6 months MOT and receives a full professional valet prior to handover. For complete peace of mind, all bikes are HPI checked, mileage verified, and prepared to an exceptional standard. Finance options are available, and UK mainland delivery starts from £100. Optional upgrades include an Extended Warranty and professional Ceramic Coating for added protection and long-term finish care. We're happy to provide detailed images or walk-around videos via WhatsApp or email. Please contact us to confirm availability before visiting, or secure the bike with a £200 deposit. Please note, mileage may increase slightly due to test rides. Visit our website to view our full stock of 60+ Harley-Davidson motorcycles, all in one place. Opening Hours:Monday-Friday: 9:00-17:30Saturday: 9:00-17:00

Specifications

Dimensions

add remove
- Length:

  89.4 in
- Ground clearance:

  6.9 in
- Rake:

  25
- Trail:

  4.3 in
- Wheelbase:

  62.4 in
- Tyres, front specifications:

  120/70R19 60V
- Tyres, rear specifications:

  170/60R17 72V
- Fuel capacity:

  4.7 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  534 lbs
- Weight, in running order:

  568.79 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  93.7 ft-lb
- Engine torque (RPM):

  6,750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  46.1 mpg (5.1 l/100km)
Drivetrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Wheels, optional style type:

  Annodized aluminum tubeless laced
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Electric

add remove
- Lights (as per country regulation), indicator:

  LED Bullet Turn Signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
