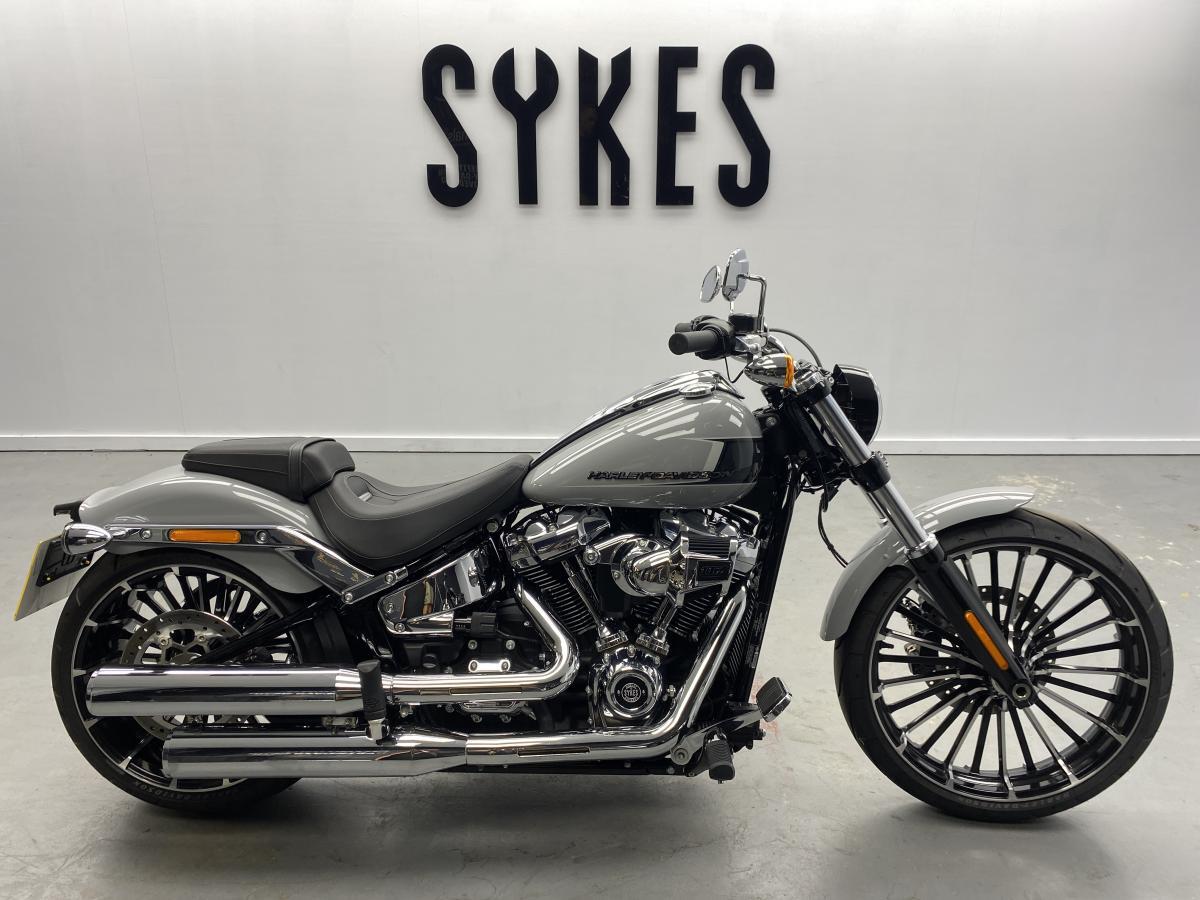

‹ Home › Inventory › 2024 Harley-Davidson FXBR Softail Breakout 117 in Billiard Grey

Harley-Davidson FXBR Softail Breakout 117 in Billiard Grey 2024 model on a 24 plate This Breakout comes to us in factory original spec having covered just 1,262 miles from new, the bike has had one previous owner and is in fantastic condition as you would expect for this age and mileage. From its muscular stance and wide 240mm rear tire to its stretched profile and low-slung seating position, the Breakout is built to stand out. Whether you're cruising through town or hitting the open highway, you'll enjoy smooth performance, strong acceleration, and exceptional comfort. Features: Milwaukee-Eight 117 V-Twin engine 6-speed transmission Wide 240mm rear tire Factory LED lighting Premium paint and chrome finishes Low-profile solo seat Digital gauge integrated into the handlebar riser This motorcycle is an excellent choice for riders looking for a premium touring bike with modern technology and legendary performance. It runs and rides flawlessly and is ready to hit the open road.All our approved used Harley-Davidson Motorcycles come fully prepared with a 110-point safety check over, 12 months Certified warranty and MOT cover, 12 months Harley Assist Rescue and Recovery, minimum of 6 months MOT and a full detailed valet. Each bike is HPI checked, mileage checked and prepared to the highest standard.Part Exchange Welcome, Finance Available, UK Mainland Delivery from £100.Option available to purchase Extended Warranty, Tyre Care Insurance and have the bike professionally Ceramic Coated.We can send detailed images or walk around videos via WhatsApp or email.Please check this bike is available before visiting or reserve it with a £200 deposit.Exact mileage may change. Check our website for our full stock list, always 60+ Harley-Davidsons in one place!Open 6 days a week 9.00 to 17:30 Monday to Friday, 9.00 to 17.00 Saturdays.

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake:

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tyres, front specifications:

  130/60B21,63H,BW
- Tyres, rear specifications:

  240/40R18,79V,BW
- Fuel capacity:

  4.2 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  653 lbs
- Weight, in running order:

  683 lb
- Tyre, type:

  Michelin^® Scorcher^® "11" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight™ 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  123.2 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  101 HP / 75 kW @ 4750 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions:

  135 g/km CO₂
Drivetrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets
- Gauges:

  2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
