‹ Home › Inventory › 2021 Harley-Davidson RA1250S Pan America Special with ARH in Vivid Black

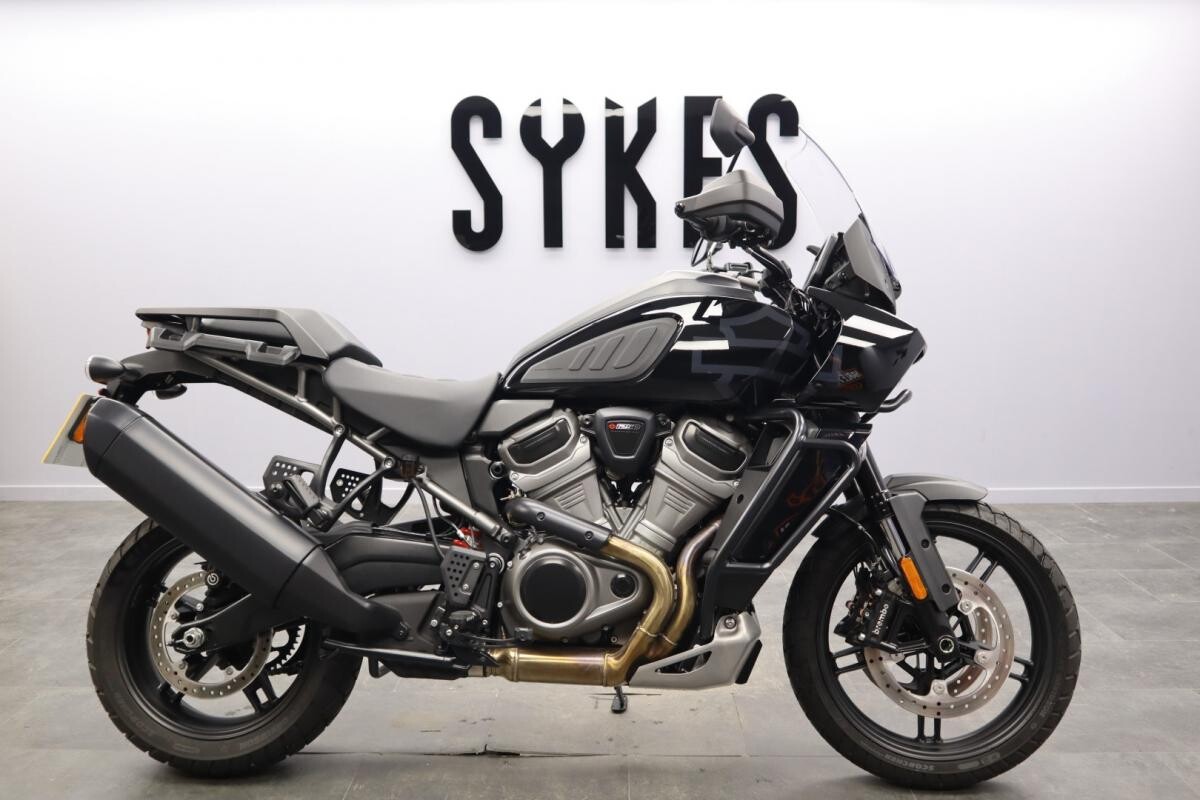

Harley-Davidson RA1250S Pan America Special with ARH in Vivid Black 2022 model on a 73 plate This low mileage Pan America Special comes to us with the factory upgrade of adaptive ride height. Its also been fitted with some tank knee pads.The bike has had one previous owner, has covered just 902 miles and is in fantastic condition. All our approved used Harley-Davidson Motorcycles come fully prepared with a 110-point safety check over, 12 months Certified warranty and MOT cover, 12 months Harley Assist Rescue and Recovery, minimum of 6 months MOT and a full detailed valet. Each bike is HPI checked, mileage checked and prepared to the highest standard. Part Exchange Welcome, Finance Available, UK Mainland Delivery from £100. Option available to purchase Extended Warranty and Tyre Care Insurance. We can send detailed images or walk around videos via WhatsApp or email. Please check this bike is available before visiting or reserve it with a £200 deposit. Exact mileage may change. Check our website for our full stock list, always 60+ Harley-Davidsons in one place! Open 6 days a week 9.00 to 17:30 Monday to Friday, 9.00 to 17.00 Saturdays.

Specifications

Dimensions

add remove
- Length:

  89.2 in
- Ground clearance:

  8.3 in
- Rake:

  25
- Trail:

  4.3 in
- Wheelbase:

  62.2 in
- Tyres, front specifications:

  120/70R19 60V
- Tyres, rear specifications:

  170/60R17 72V
- Fuel capacity:

  4.7 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  505 lbs
- Weight, in running order:

  540 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  93.7 ft-lb
- Engine torque (RPM):

  6750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46.1 mpg (5.1 l/100km)
Drivetrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Electric

add remove
- Lights (as per country regulation), indicator:

  LED Bullet Turn Signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigatio
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  Engine temp, Battery Voltage
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
