‹ Home › Inventory › 2024 Harley-Davidson RA1250S Pan America Special in Red Rock ARH

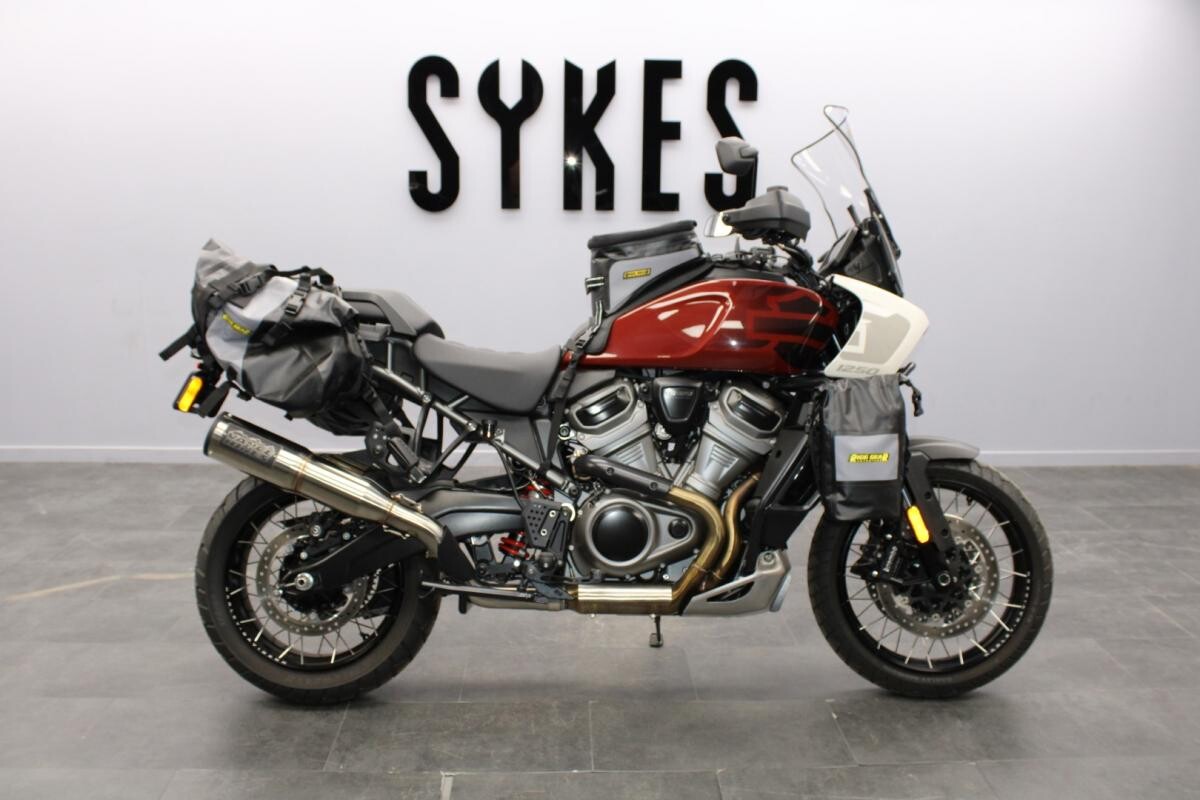

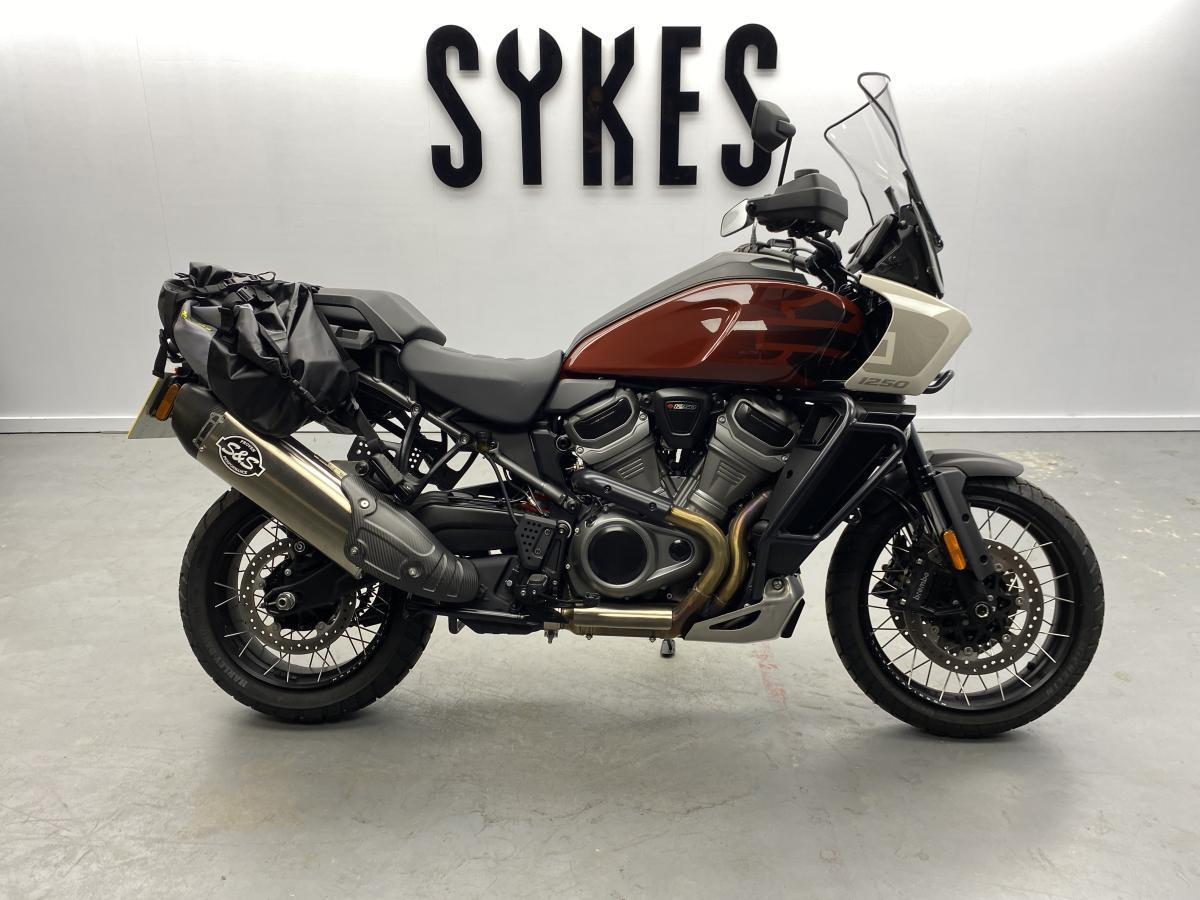

Harley-Davidson RA1250S Pan America Special in Red Rock and Birch White 2024 model on a 25 plate This Pan America Special is our ex demonstrator model which comes with the factory upgrades of adaptive ride height and tubeless laced wheels. Its also been kitted out with a Vance and Hines slip on exhaust, Rigg Gear soft luggage including saddlebags, tank bag and side bag. The bike has covered just 645 miles, has one former registered keeper and is in fantastic condition. All our approved used Harley-Davidson Motorcycles come fully prepared with a 110-point safety check over, 12 months Certified warranty and MOT cover, 12 months Harley Assist Rescue and Recovery, minimum of 6 months MOT and a full detailed valet. Each bike is HPI checked, mileage checked and prepared to the highest standard.Part Exchange Welcome, Finance Available, UK Mainland Delivery from £100.Option available to purchase Extended Warranty and Tyre Care Insurance. We can send detailed images or walk around videos via WhatsApp or email.Please check this bike is available before visiting or reserve it with a £200 deposit.Exact mileage may change. Check our website for our full stock list, always 60+ Harley-Davidsons in one place!Open 6 days a week 9.00 to 17:30 Monday to Friday, 9.00 to 17.00 Saturdays.

Specifications

Dimensions

add remove
- Length:

  89.4 in
- Ground clearance:

  8.3 in
- Rake:

  25
- Trail:

  4.3 in
- Wheelbase:

  62.4 in
- Tyres, front specifications:

  120/70R19 60V
- Tyres, rear specifications:

  170/60R17 72V
- Fuel capacity:

  4.7 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  534 lbs
- Weight, in running order:

  258 lb
Engine

add remove
- Engine:

  Revolution® Max 1250
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  13.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  95.1 ft-lb
- Engine torque (RPM):

  6750
- Lean angle, right (deg.):

  42
- Lean angle, left (deg.):

  42
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  46 mpg (5.1 l/100 km)
- CO₂ emissions testing method:

  –
- CO₂ emissions:

  –
Drivetrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  13.11
- Gear ratios (overall) 2nd:

  9.687
- Gear ratios (overall) 3rd:

  7.509
- Gear ratios (overall) 4th:

  6.057
- Gear ratios (overall) 5th:

  5.08
- Gear Ratios (overall) 6th:

  4.436
Chassis

add remove
- Front fork:

  47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps.
- Rear shocks:

  Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
- Wheels, optional style type:

  Annodized aluminum tubeless laced
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
- ABS:

  Standard
Electric

add remove
- Lights (as per country regulation), indicator:

  LED Bullet Turn Signals
- Gauges:

  6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
Infotainment

add remove
- Type:

  Color TFT w/ Touch
- Headset specifications (if equipped):

  Bluetooth
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
